Nissan Patrol GQ TD42 GTX28 Turbo Kit

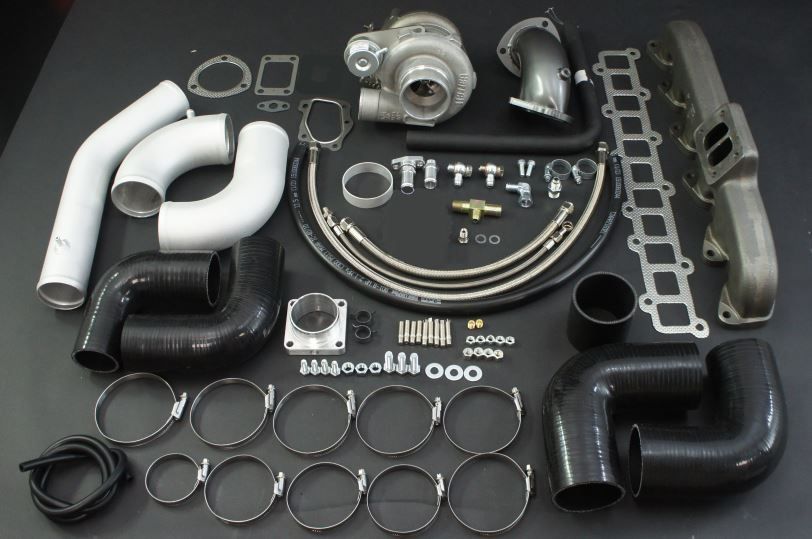

Kit Features:

• Garrett GTX2860 GEN II Base Turbocharger
• Braided oil & water lines
• Custom CNC Machined flanges
• Aluminium mandrel bent intake piping
• Custom HPD dump pipe
• Optional Upgrades below (intercooler, turbo, exhaust)

HPD Turbo upgrade kits are an excellent way to gain safe and reliable power and torque for your naturally aspirated vehicle.

HPD use a Garrett turbocharger combined with braided oil and water lines, HPD CNC machined adaptor flanges, HPD custom manufactured 3″ air intakes, custom HPD dump pipes and cast log style manifolds for high flow and OEM reliability.

EXHAUST:
When we designed and built this turbo kit we used an OEM style cast log manifold with a T3 base plate design allowing us to run Garrett GTX28/60 GEN II turbochargers for performance and reliability.
This setup is complimented with a custom HPD 3” dump pipe with an EGT sensor provision for those who choose to run a Exhaust Gas Temperature probe for keeping an eye on exhaust temps. The benefit to this dump pipe is that it allows the owner to run most turbo GU aftermarket exhaust systems as a direct bolt on. These GU systems will have a 3 bolt flange at the base of the dump pipe.

AIRBOX:
This kit has multiple options to suit various airboxs. In standard form this will utilize your GQ Pre filter housing which will require you to install an air filter. Alternatively you can select the kit to suit an upgraded airbox such as the GU or alternatively exclude the inlet piping for other custom airboxes and create your own pipework.

TURBOS:
The turbocharger that is supplied as the base option for the GQ TD42 direct fit turbo kit is the GTX2860 GEN II by Garrett.
HPD have found that this turbocharger compliments the characteristics of the 4.2ltr TD42 motor very well. Combining a fast spool rate with reliable power and substantial torque we feel like this option will satisfy 90% of customers looking for better towing capability, highway speeds and general 4wd application.
Should you be looking for a little more power, torque and performance the next step up from Garretts GT series is the new GTX Gen II series. These turbos move some serious air speed and are capable of running from 20-30psi all day. Not only are they capable of higher boost application but they also spool up faster, hold boost longer and have a billet compressor wheel hidden inside. Another new feature is the added provision for a compressor wheel speed sensor and anti-surge slots meaning Better performance across the board.

PLEASE NOTE: SHOULD YOU DECIDE TO RUN A LARGER GTX TURBOCHARGER YOU WILL REQUIRE THE CORRECT SUPPORTING MODIFICATIONS TO SUPPORT THE ADDED DIESEL, LOAD AND POWER. IF YOU HAVE ANY QUESTIONS REGARDING THIS PLEASE CALL HPD 08 8299 0320 AND SPEAK TO ONE OF OUR FRIENDLY SALES MEMBERS.
