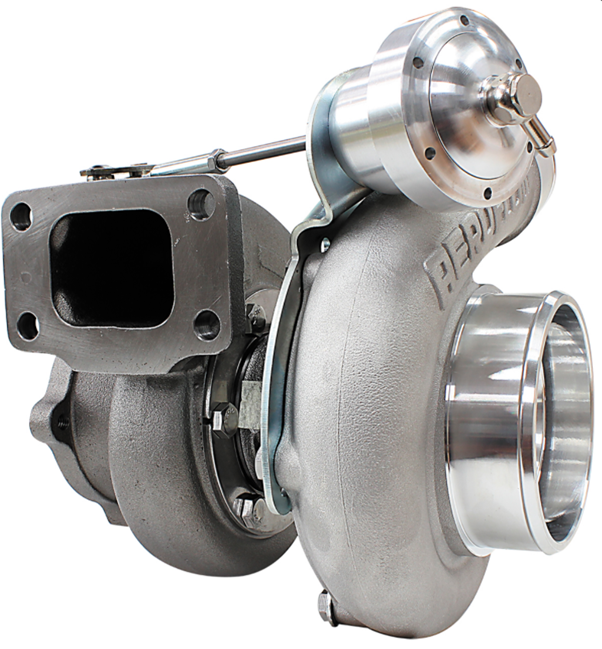

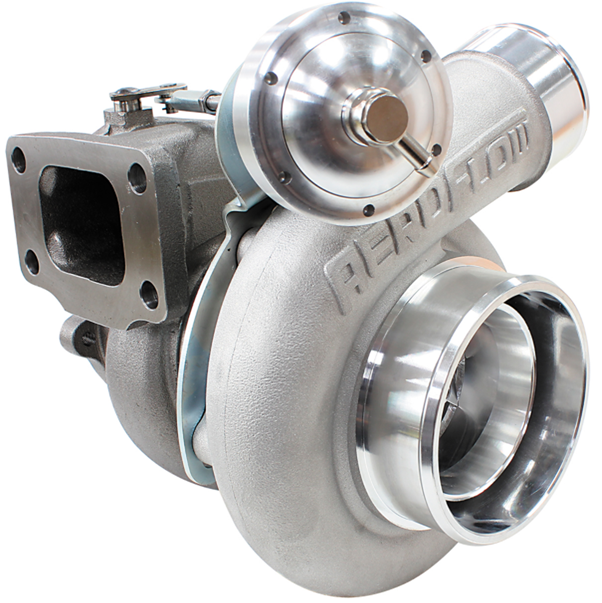

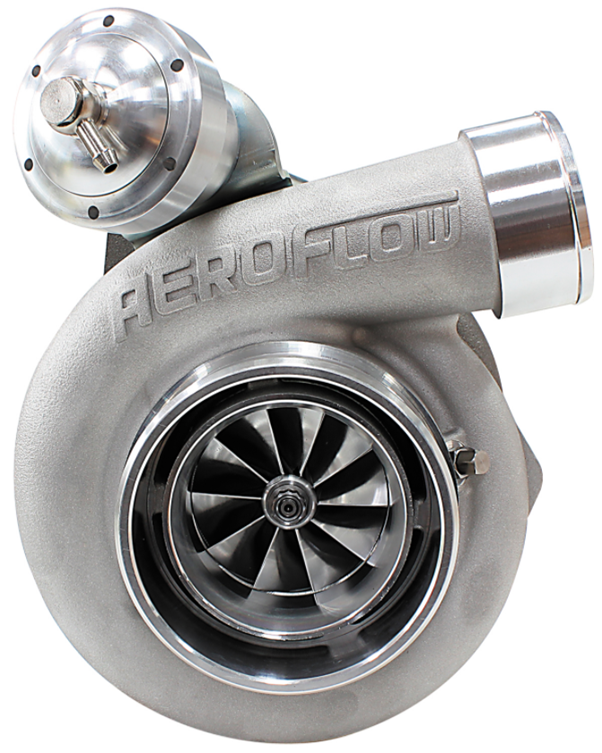

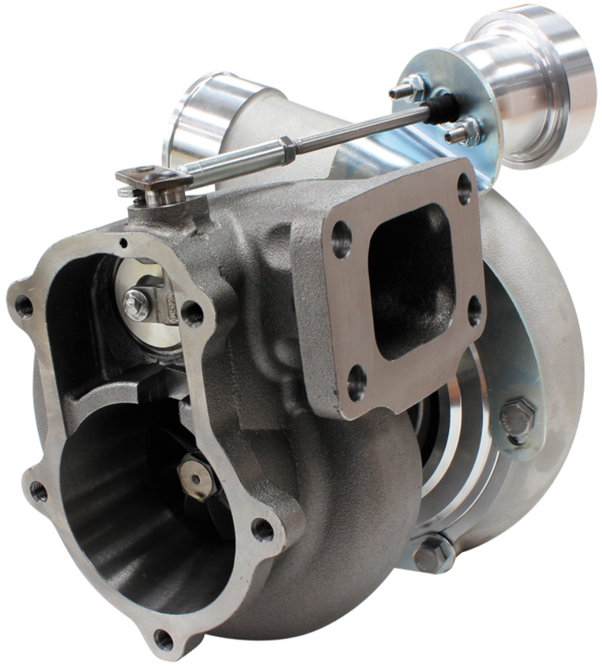

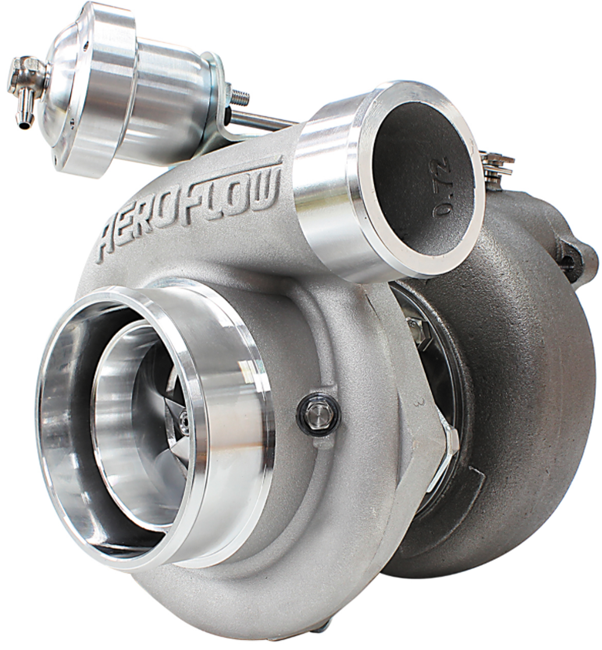

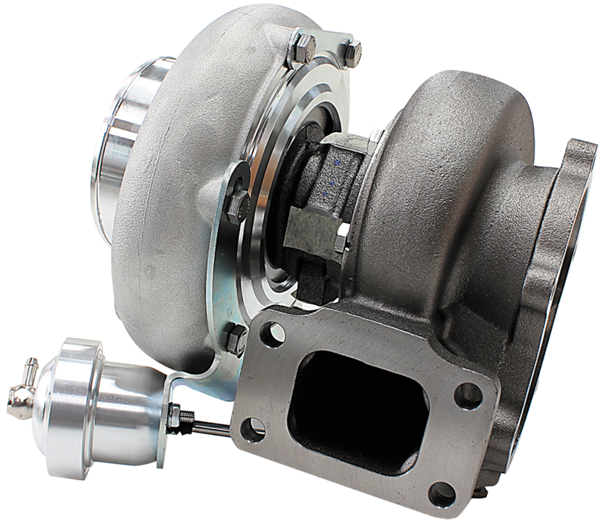

AF8005-3014 Boosted Turbo 6662 1.06 T3 Bolt Outlet - fits Barra

BRAND:  AEROFLOW  (similar to Garrett GTX3582)
Recommended horsepower rating: 425-825HP
Recommended engine displacement: 2.5L to 4.5L
Dual ceramic ball bearing
Billet aluminium compressor wheel.
Ported shroud compressor housing cover.
Dual internal wastegate brackets included to suit both BA/BF & FG models
Standard XR6 turbine outlet flange

SOLD SEPARATELY –

Speed sensor port included in compressor cover (Sold separately AF8050-1010)

Turbo oil line feed  –
Ford XR6 BA BF (see AF30-1000)
Ford XR6 FG (see AF30-1005)
Turbo drain adapter (see AF463-01 or AF463-05)
Turbine inlet gasket  (see AF9557-0005)

Will suit standard coolant lines or M14 x1.5mm coolant fittings sold separately

Compressor:
Inducer – 66mm
Exducer – 82mm
Extended Tip – 86mm
A/R – .72
Inlet – 4″
Outlet – 2.5″

Turbine:
Inducer – 68mm
Exducer – 62.3mm
A/R – 1.06
Inlet Flange – T3
Outlet Flange – XR6 5 Bolt
Wastegate – 36mm Internal 9 PSI
